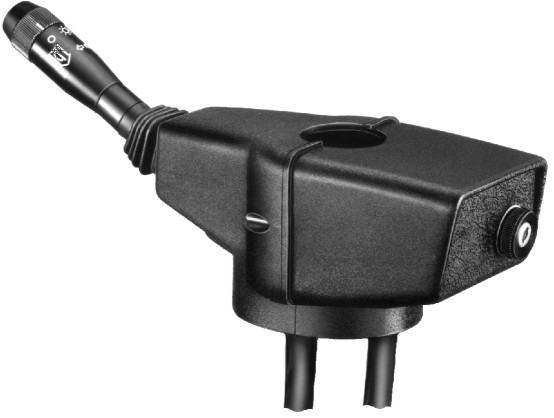

190 series STEERING COLUMN LOCKING LIGHT CONTROL SWITCH + DIMMER SWITCH




-INTERIOR-EXTERIOR LIGHTS IGNITION: TURNING KNOB LEVER
-INTERIOR LEVER: METALLIC
-LEVER COVERING: POLYAMIDE+FUNCTION SYMBOLS
-CAP: BLACK NEOPRENE RUBBER
-PROTECTION CONTAINER: BLACK ALUMINIUM ALLOY
-CONNECTION CABLE: SUITABLE WITH DIFFERENT KINDS OF CONNECTION

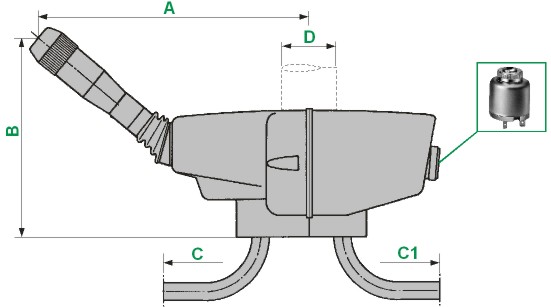

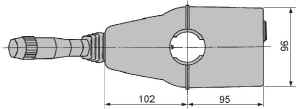

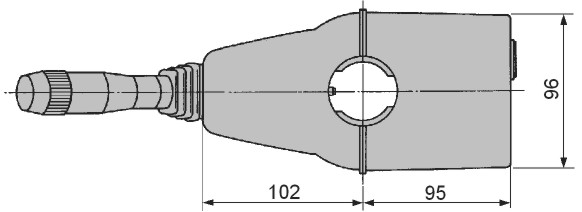

d1_small.jpg      d2_small.jpg



FUNCTION PEAK LOAD 12 V PEAK LOAD 24 V
WARNING HORN 5 A 3 A
MEETING BEAMS 6,5 A 4,5 A
DRIVING BEAMS 7 A 5 A
DRIVING BEAMS FLASHING 7 A 5 A
DIRECTION 7 A 5 A
GENERAL LIGHTING 5 A 3 A





P/N A B c36s.gifC

SPARE PART

 FUNCTION DIAMETRO
D		 FUNCTION A1 B1 c36d.gifC1 r36d.gif
SPARE PART
01.212.000 215

128

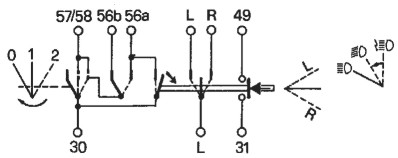

 c01212000s.jpg (7685 byte) 01.212.500 WARNING HORNMEETING BEAMSDRIVING BEAMSDRIVING BEAMS FLASHINGDIRECTIONGENERAL LIGHTING Ø 38 14176000F_small.gif     c01212000d.jpg (4800 byte) 01.170.600





P/N A B c36s.gifC

SPARE PART

 FUNCTION DIAMETRO
D		 FUNCTION A1 B1 c36d.gifC1 r36d.gif
SPARE PART
01.376.000 215

128

 c01376000s_small.gif 01.376.500 WARNING HORNMEETING BEAMSDRIVING BEAMSDRIVING BEAMS FLASHINGDIRECTIONGENERAL LIGHTING Ø 38 14110000F_small.gif     c01376000d_small.gif 01.376.600





P/N A B c36s.gifC

SPARE PART

 FUNCTION DIAMETRO
D		 FUNCTION A1 B1 c36d.gifC1 r36d.gif
SPARE PART
01.225.000 215

128

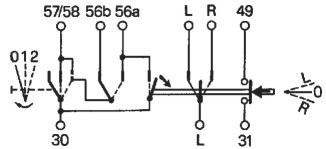

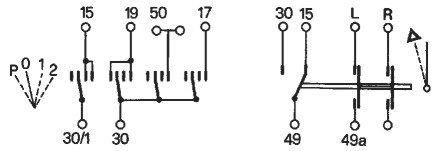

 c01225000s_small.gif 01.225.500 WARNING HORNMEETING BEAMSDRIVING BEAMSDRIVING BEAMS FLASHINGDIRECTIONGENERAL LIGHTING Ø 38 010.gif14115000F_small.gif     c01225000d_small.gif 01.209.600
