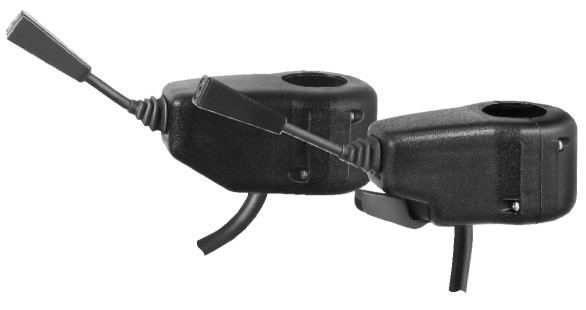

134 series STEERING COLUMN LOCKING LIGHT CONTROLS SWITCH

-LEVER: METALLIC WITH BLACK VARNISHING
-KNOB LEVER: POLYAMIDE
-CAP: BLACK NEOPRENE RUBBER
-PROTECTION CONTAINER: BLACK ALUMINIUM ALLOY
-CONNECTION CABLE: SUITABLE WITH DIFFERENT KINDS OF CONNECTION
-SETTING: APPLICABLE ON STEERING COLUMN OF DIFFERENT DIAMETERS
-LIGHTS IGNITION: SUITABLE VERSIONS WITH ADDITIONAL LEVER AND LIGHTS IGNITION

FUNCTION	PEAK LOAD 12 V	PEAK LOAD 24 V
	5 A	3 A
	6,5 A	4,5 A
	7 A	5 A
	7 A	5 A
	7 A	5 A
	5 A	3 A
	3 A	2 A

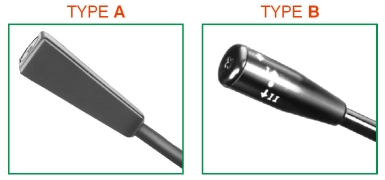

TYPE A

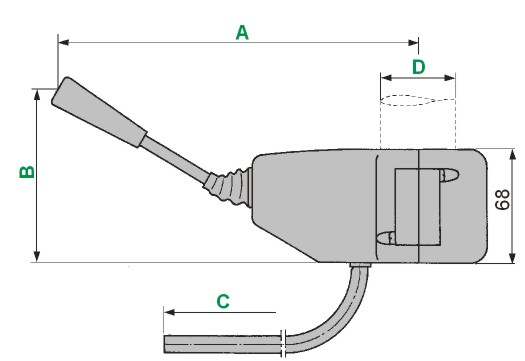

P/N	A	B	C		FUNCTION	D
01.565.000	210	90				Ø 45

TYPE A

P/N	A	B	C		FUNCTION	D
01.577.000	210	85				Ø 45

TYPE B

P/N	A	B	C		FUNCTION	D
01.263.000	210	90				Ø 50

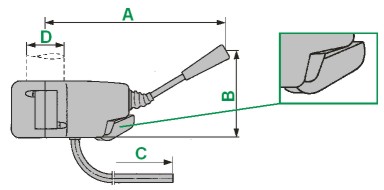

TYPE A

P/N	A	B	C		FUNCTION	D
01.528.000	210	85				Ø 45
01.150.000	210	85				Ø 45
01.0588.0000	210	85				Ø 45

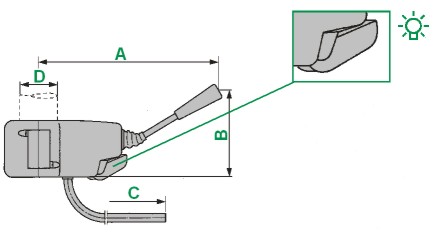

TYPE A

P/N	A	B	C		FUNCTION	D
01.154.000	205	46				Ø 38

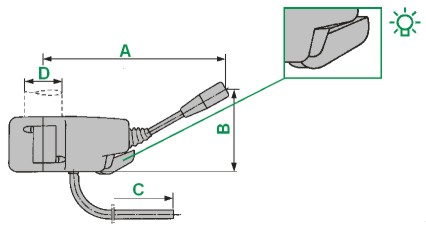

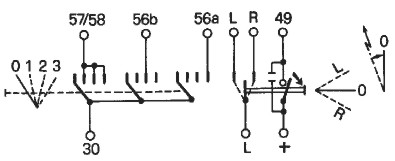

TYPE B

P/N	A	B	C		FUNCTION	D
01.205.000	210	96				Ø 45
