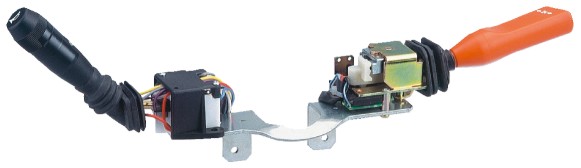

190 series STEERING COLUMN LOCKING

-INTERIOR LEVER: METALLIC
-CAP: BLACK NEOPRENE RUBBER
-CONNECTION CABLE: WITH FEMALE CONNECTOR'S 6 VIE AMP MATE-N-LOCK UNIVERSAL SERIES
-REST BRACKET: ZINC STEEL


CONTROL LIGHTS SWITCHES

-LEVER COVERING: POLYAMIDE+FUNCTION SYMBOLS
-PROTECTION CONTAINER: POLYAMIDE

FORWARD-NEUTRAL-REVERSE SHIFTER

-LEVER COVERING: ABS+FUNCTION SYMBOLS
-ELECTRICAL CONTACTS: MICRO SWITCH IP 66

MICROSWITCH

FUNCTION	PEAK LOAD 12 V	PEAK LOAD 24 V
	5 A	3 A
	7 A	5 A
	2 A	1 A
	5 A	3 A
	5 A	3 A

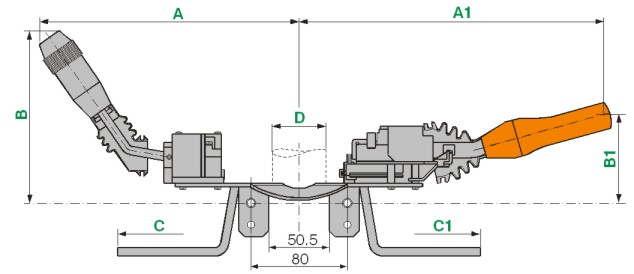

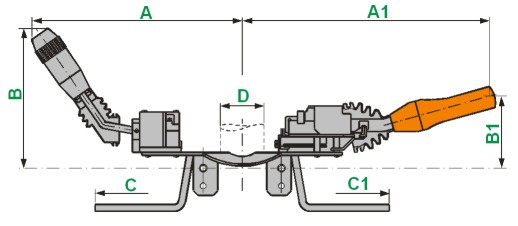

P/N	A	B	C	SPARE PART	FUNCTION	D	FUNCTION	A1	B1	C1	SPARE PART
01.0699.0000	219	125		01.0699.0500		Ø 50		242	68		01.0699.0600
