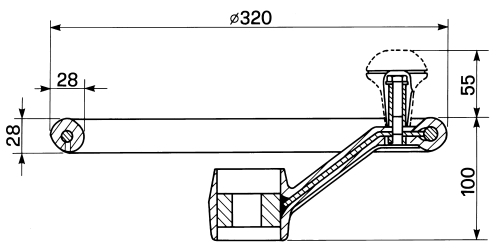

STEERING WHEELS WITH KNOB WITH SLOT FOR KEYWAY
HARD OR SOFT KNOB AVAILABLE
| P/N | A | C | E | TAPER | G | L | M | DANFOSS COLUMN TYPE |
| 0032.0172 | 50 | 5 | 13,00 | 1:20 | 21,62 | 27 |  |
2 |
| 0032.0173 | 50 | 5 | 13,00 | 1:20 | 21,77 | 30 | |
2 |
| 0032.0174 | 50 | 5 | 12,40 | 1:7,6 | 19,64 | 26 | |
|
| 0032.0175 (.) | 50 | 5 | 14,10 | 1:20 | 24,50 | 30 | |
1 |
| 0032.0200 | 50 | 5 | 14,00 | 1:16 | 21,81 | 30 | |
|
| 0032.0297 | 50 | 5 | 10,75 | 1:20 | 17,87 | 30 | |
|
| 0032.0333 (.) | 50 | 5 | 12,40 | 1:7,6 | 19,64 | 26 | |
|
| 0032.0344 | 50 | 5 | 11,15 | 1:20 | 17,65 | 30 | |
1 |
| 0032.0355 (x) | 50 | 5 | 14,80 | 1:20 | 24,52 | 30 | |
|
(.):
WITH THREADED HOLES
(x): WITH SOFT KNOB
