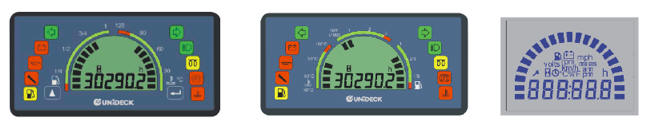

LCD Segments (Example) |
FEATURES
Connector | AMP Tyco or Molex Fit |
Display Window | Anti scratch resistant Polycarbonate screen |
Display | Custom designed Display available |
LED Symbols | Custom designed Symbols available |
Clock | Digital clock |
Buttons | For clock setting and/or display mode switch |
Buzzer | Loudness > = 85 dB |
Output | 1,5A FET output |

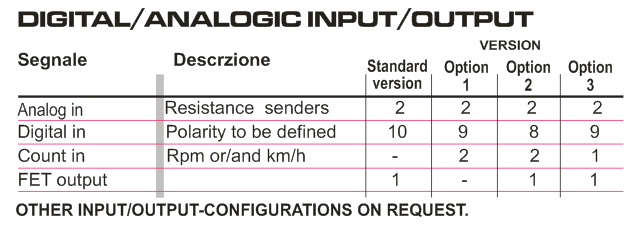

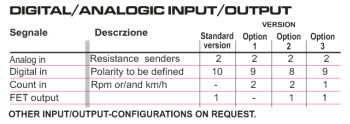

Communication |
Digital / Analog in / out CAN Interface; CAN Open or SAE J1939 protocol |
TECHNICAL DATA

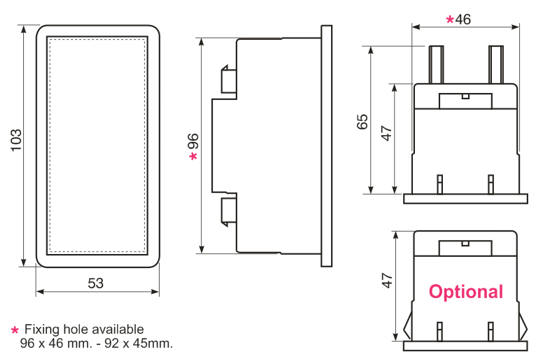

Fixing | metal strap with two nuts or four fixing clamps optional |
IP Rating Front | IP67 |
IP Rating Rear | Ip65 |
Operating Temperature |
-40°C to +85°C |
Storage Temperature |
-40°C to +90°C |
Humidity | 95% RH (non-condensing) |
Vibration | EN 60068-2-64 (1g, 10-500Hz), SAE J1378 (20g, 10-80Hz) |
Shock |
EN 60068-2-27 (30g, 18ms), EN 60068-2-29 (25g, 6ms) SAE J1378 (55g, 9-13ms) |
ESD | EN 12895, DIN 40839-1, EN 13309 |
Approbation | CE |
Display |
TN - LCD with backlight 2 x 10 segment bargraph - Temperature - Fuel level 6 numeric digits Display, supports the following modes: - Speed [km/h], [mph] - Service [h] - Hourmeter - Clock - Volt - rpm - Temperature [ C], [ F] - Error codes (Option CAN) |
LED | 10 LEDs max at the front screen |
Operating Voltage |
8-36 VDC |
Operating Current |
360mA at 8V, 85mA at 36V (all LED and Backlight on) |
Key off Current | without clock 0mA; with clock <2mA |
Front Foil | Chemical and UV resistant polyester foil |
Display Window | polycarbonate screen |
