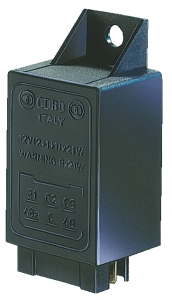

FLASHER UNITS
FEEDING VOLTAGE 8 -18 V
- BULB FAILURE INDICATION
- FLASHING FREQUENCY 1.17 -1.63 Hz
- WORKING TEMPERATURE -40° C +80°C
 |
 |
 |
 |
CONNECTION DIAGRAM
| P/N |
|
|
VOLTAGE | ABSORBED CURRENT | CONNECTION BOARD | WIRING DIAGRAM |
| 19.100.000 | - | X | 12V | (2+1+1)x21 +5 W (8x21 W) |
|
|
| 19.101.000 | X | - | 24V | (2+1+1)x21 +5 W (8x21 W) |
|
|
