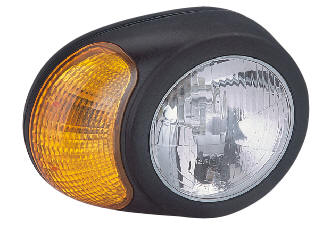

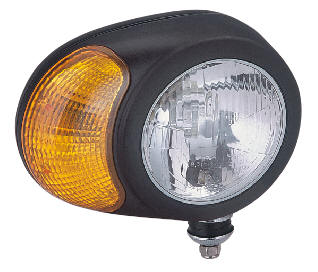

ORION LIGHT SERIES




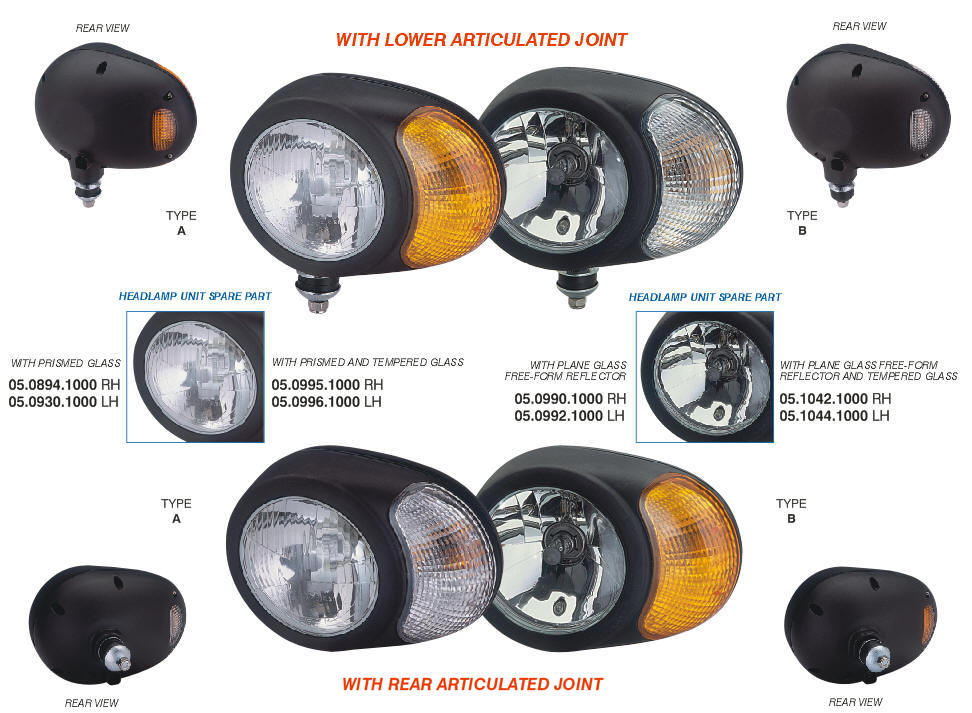

HEADLAMP UNITS WITH FRONT-SIDE TURN INDICATOR


SEALING: IP 66 - IPX9K TURN LIGHT LENS: POLYCARBONATE HEADLAMP: GLASS SELF-LOCKING NUT: M10 STAINLESS STEEL GORETEX VALVE: WITH PLASTIC SUPPORT


LEGEND





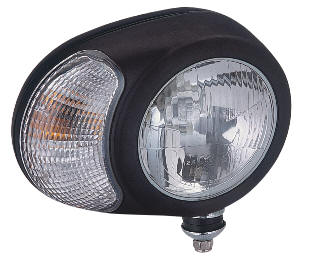

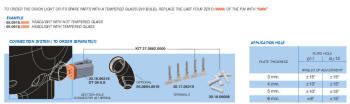

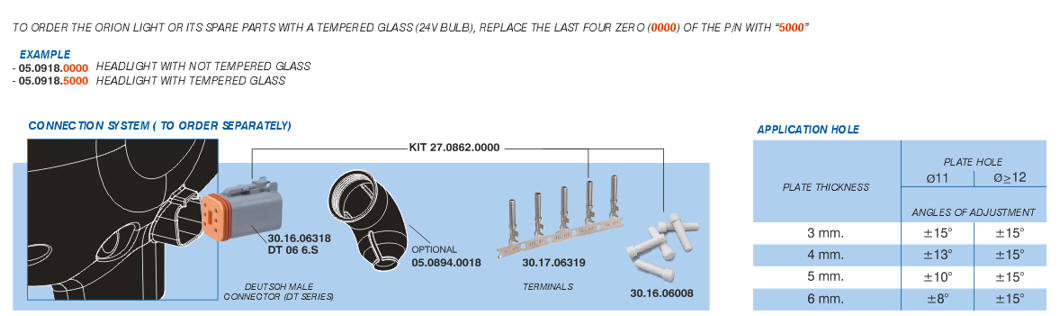

P/N TYPE LOWER ARTICULATED JOINT

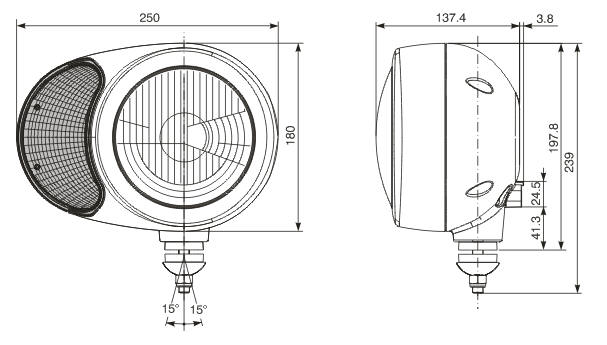

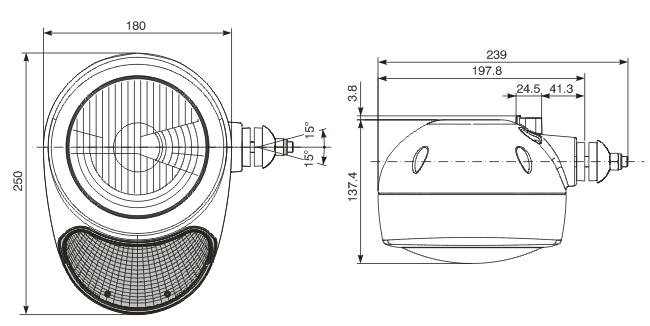

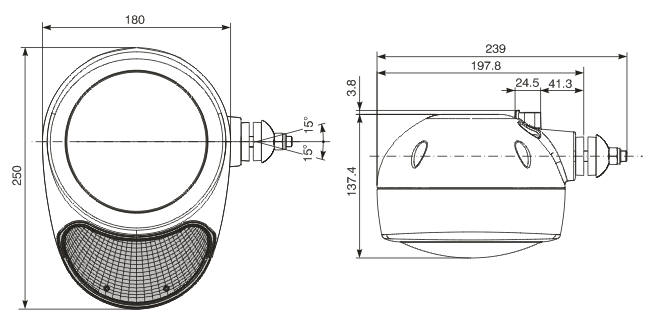

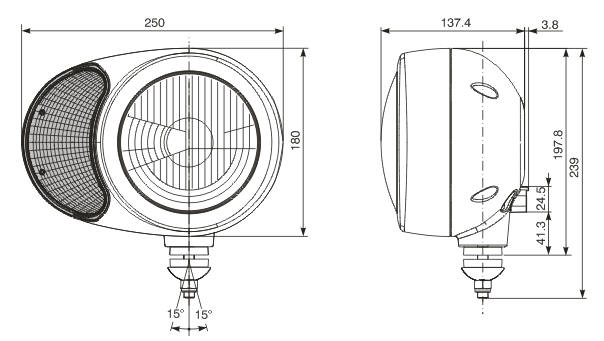

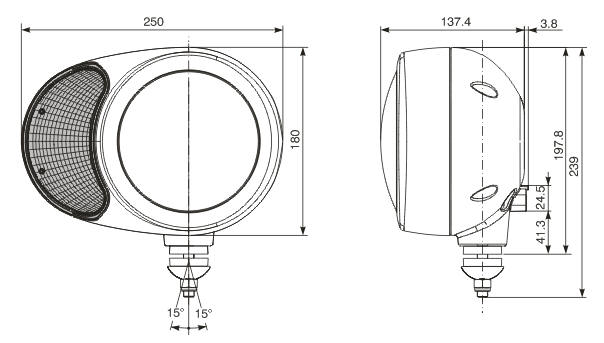

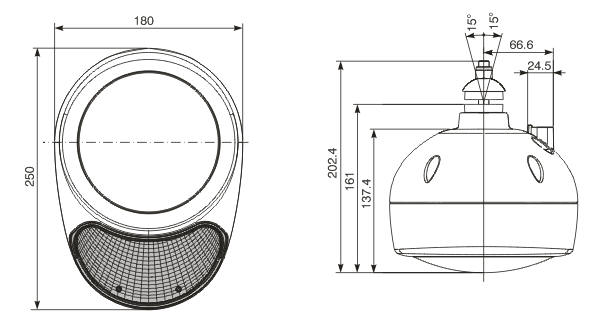

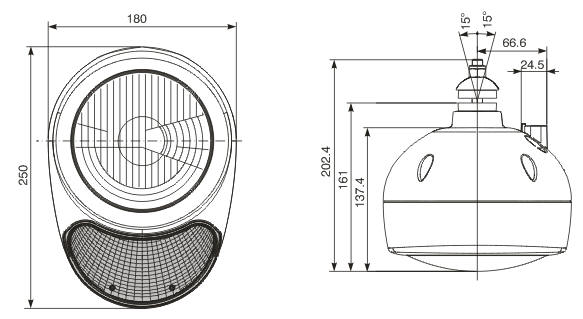

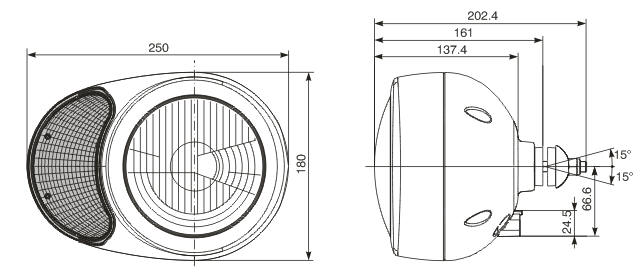

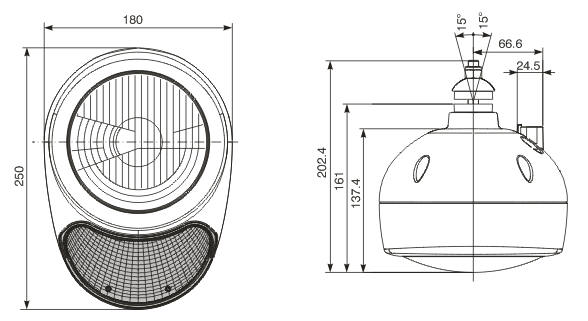

DIMENSIONS
HORIZONTAL INSTALLATION		 Left driving Right driving 05.02b26.gif 05.02b20.gif 05.28b61.jpg
05.0918.0000 RH
RHD
05.0919.0000 LH
RHD

05.0894.0000 RH
RHD
05.0895.0000 LH
RHD

 A wp3347nq_small.gif   x x x x
05.1057.0000 RH
RHD
05.1058.0000 LH
RHD

05.1049.0000 RH
RHD
05.1050.0000 LH
RHD

 B wp5vsqpr_small.gif   x x x x
05.0938.0000 RH
LHD
05.0939.0000 LH
LHD

05.0930.0000 RH
LHD
05.0931.0000 LH
LHD

 A wpv4z2ts_small.gif x   x x x
05.1073.0000 RH
LHD
05.1074.0000 LH
LHD

05.1065.0000 RH
LHD
05.1066.0000 LH
LHD

 B wp5vsqpr_small.gif x   x x x



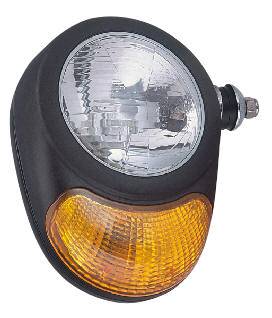

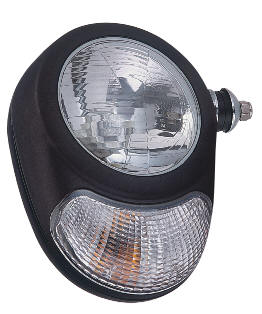

P/N TYPE SIDE ARTICULATED JOINT

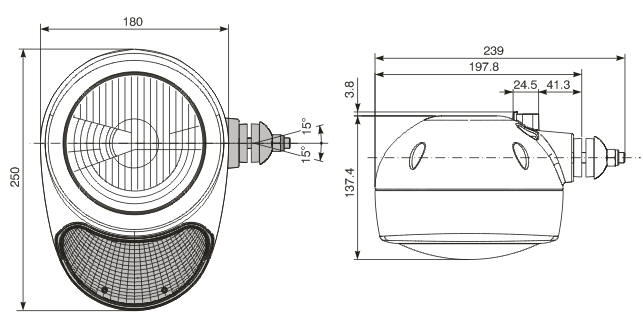

DIMENSIONS
VERTICAL INSTALLATION		 Left driving Right driving 05.02b26.gif 05.02b20.gif 05.28b61.jpg
05.0920.0000 RH
RHD
05.0921.0000 LH
RHD

05.0910.0000 RH
RHD
05.0911.0000 LH
RHD

 A wpf9vh4r_small.gif   x x x x
05.1059.0000 RH
RHD
05.1060.0000 LH
RHD

05.1051.0000 RH
RHD
05.1052.0000 LH
RHD

 B wpjrrxd8_small.gif   x x x x
05.0940.0000 RH
LHD
05.0941.0000 LH
LHD

05.0932.0000 RH
LHD
05.0933.0000 LH
LHD

 A wpladu2a_small.gif x   x x x
05.1075.0000 RH
LHD
05.1076.0000 LH
LHD

05.1067.0000 RH
LHD
05.1068.0000 LH
LHD

 B wpjrrxd8_small.gif x   x x x



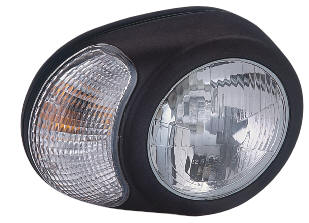

P/N TYPE REAR ARTICULATED JOINT

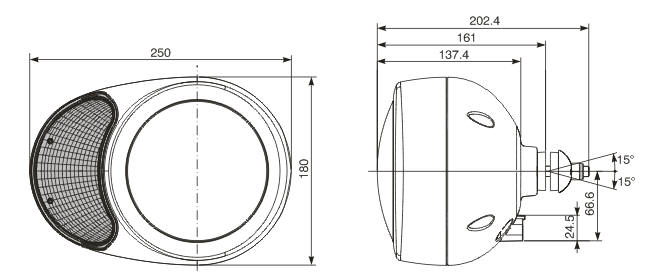

DIMENSIONS
HORIZONTAL INSTALLATION		 Left driving Right driving 05.02b26.gif 05.02b20.gif 05.28b61.jpg
05.0922.0000 RH
RHD
05.0923.0000 LH
RHD

05.0914.0000 RH
RHD
05.0915.0000 LH
RHD

 A wpsqw4zl_small.gif   x x x x
05.1061.0000 RH
RHD
05.1062.0000 LH
RHD

05.1053.0000 RH
RHD
05.1054.0000 LH
RHD

 B wp4fztl5_small.gif   x x x x
05.0942.0000 RH
LHD
05.0943.0000 LH
LHD

05.0934.0000 RH
LHD
05.0935.0000 LH
LHD

 A wptdedfz_small.gif x   x x x
05.1077.0000 RH
LHD
05.1078.0000 LH
LHD

05.1069.0000 RH
LHD
05.1070.0000 LH
LHD

 B wp4fztl5_small.gif x   x x x



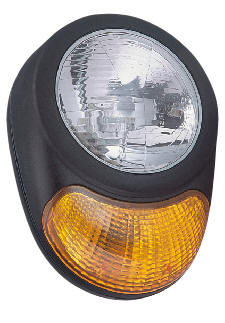

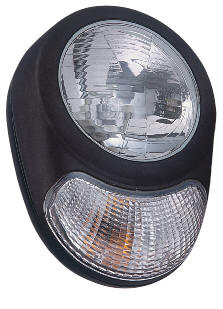

P/N TYPE REAR ARTICULATED JOINT
DIMENSIONS
VERTICAL INSTALLATION		 Left driving Right driving 05.02b26.gif 05.02b20.gif 05.28b61.jpg
05.0924.0000 RH
RHD
05.0925.0000 LH
RHD

05.0916.0000 RH
RHD
05.0917.0000 LH
RHD

 A wp7rlfut_small.gif   x x x x
05.1063.0000 RH
RHD
05.1064.0000 LH
RHD

05.1055.0000 RH
RHD
05.1056.0000 LH
RHD

 B wp611pha_small.gif   x x x x
05.0944.0000 RH
LHD
05.0945.0000 LH
LHD

05.0936.0000 RH
LHD
05.0937.0000 LH
LHD

 A wpqqu5fo_small.gif x   x x x
05.1079.0000 RH
LHD
05.1080.0000 LH
LHD

05.1071.0000 RH
LHD
05.1072.0000 LH
LHD

 B wp611pha_small.gif x   x x x
