DESCRIPTION
SWITCHES
DESIGNED TO MAKE EASY THE INDIVIDUATION OF CONTROL IN POOR VISIBILITY
CONDITIONS
THEY HAVE WIDE ROCKERS MADE OF POLYCARBONATE COVERED WITH SYNTHETIC RUBBER,
THAT MAKES THEM PLEASANT TO TOUCH (SOFT TOUCH) EASILY REPLACEABLE,
EXTERNAL FROM THE PANEL
AVAILABLE WITH DIFFERENT ICONS AND COLOURS, ALSO WITH SEARCH FUNCTION
LIGHT
DIMENSIONS 48.5 X 24.5 X 76 MM AND WITH ADAPTER P/N 16.600.020, 22 X 44 MM
THAT SATISFY THE MAJORITY OF REQUIREMENTS OF THE WORLDWIDE MARKET OF
VEHICLES FOR FARM, CONSTRUCTION, PEOPLE OR GOODS TRANSPORTATION
SNAP-IN MOUNTING, USING SPRINGS BUILT IN POLYAMIDE HOUSING, DIRECTLY ON
THE PANEL, 1,5 ± 3 MM OR USING SUITABLE MODULAR FRAMES AVAILABLE
IN SINGULAR OR 3/6 UNITS VERSION.
MOISTURE AND DUST RESISTANCE IP66, WITH GASKET P/N 16.600.039 MOUNTED
BETWEEN PANEL AND SWITCH.
SOLE CONNECTOR P/N 16.600.021 FOR ALL CIRCUITS AND NUMBER OF TERMINALS.

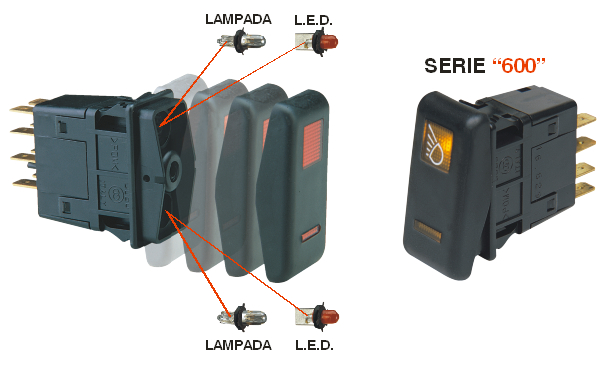

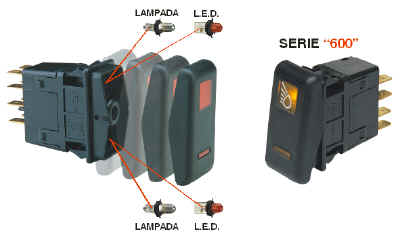

AVAILABLE IN THE FOLLOWING VERSIONS:
NON-ILLUMINATED
ONE OR TWO ENDS ILLUMINATED
WITH BULB OR L.E.D.
TO
MAKE STOCK MANAGEMENT EASY, THEY CAN BE PROVIDED AS FOLLOWS:
SWITCH HOUSING (IDENTIFIED WITH 100 AT THE END OF THE P/N)
SEPARATE ROCKER (SEE ROCKER)
SWITCHES WITH ROCKER (THE CATALOGUE SHOWS AVAILABLE VERSION IN THIS
MOMENT. SPECIFIC VERSIONS CAN BE REQUESTED CONTACTING OUR SALES DEPARTMENT). |
|
SPECIFICATIONS
RATINGS:
10 AMPS @ 12 V.
8 AMPS @ 24 V.
CONTACT MECHANISM:
MAINTAINED OR MOMENTARY ACTION.
CONTACT MATERIAL:
MOVABLE - BRASS WITH SILVER ALLOY CONTACT FACE BUTTON.
STATIONARY - SILVER PLATED BRASS WITH SILVER ALLOY FACE BUTTON.
TERMINAL TYPE:
STANDARD 6,35 MM SPADE, SILVER PLATED BRASS.
HOUSING MATERIAL:
BLACK ACETAL POLYMER.
ROCKER MATERIAL:
PC COVERED WITH SYNTHETIC RUBBER
ICONS:
WHITE COLOUR. PAD-PRINTED OR SILK SCREENED ON ROCKER.
SEALING:
IP 66
MOUNTING HOLE:
RECTANGULAR CUT-OUT 21 X36,8 MM.
22 X 44 MM. WITH ADAPTER 16.600.020 ON PANEL 1,5 ± 3 MM.
MOUNTING MEANS:
SNAP-IN MOUNTING USING BUILT-IN SPRINGS. |
