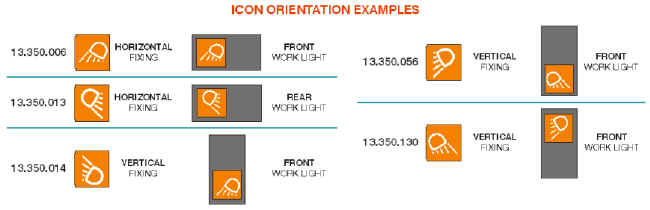

REPRESENTATION OF
THE SYMBOL WITH HORIZONTAL FIXED SWITCH, LEFT SIDE LENS |
||||||||
|
SERIES ICONS - " 350 " |
||||||||
|
P/N |
ICON |
DESCRIPTION |
P/N |
ICON | DESCRIPTION |
P/N |
ICON | DESCIPTION |
| 13.350.001 |  |
GREEN | 13.350.169 |  |
ALL WHEEL DRIVE | 13.350.181 |  |
MOBILE AXLE |
| 13.350.002 |  |
RED | 13.350.074 |  |
4 WHEELS DRIVE | 13.350.199 |  |
MOBILE AXLE |
| 13.350.003 |  |
AMBER | 13.350.127 |  |
DIFFERENTIAL LOCK | 13.350.068 |  |
CROSS SHAFT AXLE LOCK |
| 13.350.004 |  |
YELLOW | 13.0350.0214 |  |
DIFFERENTIAL LOCK | 13.350.171 |  |
MICROMOTORS ROTATION CONTROL |
| 13.350.005 |  |
BLUE | 13.350.053 |  |
DIFFERENTIAL LOCK | 13.350.124 |  |
MICROMOTORS ROTATION |
| 13.350.115 |  |
BLACK | 13.350.097 |  |
STAIR LIGHT | 13.350.095 |  |
SELECT GEAR H/S |
| 13.350.116 |  |
CLEAR | 13.350.114 |  |
STAIR LIGHT | 13.350.119 |  |
SELECT GEAR H/S |
| 13.350.006 |  |
WORK LIGHT | 13.350.050 |  |
LIFTING | 13.350.208 |  |
FIRST GEAR |
| 13.350.013 |  |
WORK LIGHT | 13.350.038 |  |
ENGINE PREHEATING | 13.350.209 |  |
SECOND GEAR |
| 13.350.014 |  |
WORK LIGHT | 13.350.157 |  |
THERMOSTARTER | 13.350.210 |  |
LEFT STABILZERS |
| 13.350.056 |  |
WORK LIGHT | 13.350.086 |  |
TERMOSTARTER | 13.350.211 |  |
RIGHT STABILZERS |
| 13.350.130 |  |
WORK LIGHT | 13.350.087 |  |
TERMOSTARTER | 13.350.037 |  |
ADDITIONAL HEATING |
| 13.350.018 |  |
WORK LAMP | 13.350.010 |  |
TEMPERATURE STARTER | 13.350.039 |  |
CARGO COMPARTMENT LIGHTING |
| 13.350.019 |  |
WORK LIGHT | 13.350.098 |  |
POSITION LIGHTS | 13.350.040 |  |
ENGINE HEATING |
| 13.350.131 |  |
WORK LIGHT | 13.350.175 |  |
POSITION LIGHTS | 13.350.041 |  |
EXTERIOR MIRROR DEFROSTER |
| 13.350.007 |  |
WARNING | 13.350.174 |  |
HIGH AND LOW BEAM | 13.350.042 |  |
HEATING SEAT |
| 13.350.016 |  |
WARNING | 13.350.177 |  |
WORK LAMPS | 13.350.043 |  |
AUXILIARY HEATING |
| 13.350.044 |  |
WARNING | 13.350.036 |  |
WINDOW LIFTER | 13.350.064 |  |
TRAILOR'S DIRECTION INDICATOR |
| 13.350.122 |  |
WARNING | 13.350.031 |  |
FRONT FOG LIGHTS | 13.350.066 |  |
STARTER |
| 13.350.008 |  |
ELECTRICAL FAN | 13.350.093 |  |
FRONT FOG LIGHTS | 13.350.067 |  |
TRAILING AXLE |
| 13350.009 |  |
CHEK | 13.350.032 |  |
REAR FOG LIGHTS | 13.350.072 |  |
UNIT CONTROL |
| 13.350.017 |  |
CHEK | 13.350.091 |  |
REAR FOG LIGHTS | 13.350.077 |  |
PULL HOCK |
| 13.350.028 |  |
AIR CIRCULATING FAN | 13.350.112 |  |
REAR FOG LIGHTS | 13.350.079 |  |
HAND BRAKE ON |
| 13.350.012 |  |
MASTER LIGHTING SWITCH | 13.350.206 |  |
REAR FOG LIGHTS | 13.350.080 |  |
HYDRAULIC DRIVE LOCKING |
| 13.350.030 |  |
MASTER LIGHTING SWITCH | 13.350.118 |  |
BEACON | 13.350.082 |  |
WORK BRAKES |
| 13.350.045 |  |
MASTER LIGHTING SWITCH | 13.350.121 |  |
BEACON | 13.350.083 |  |
CROSS SHAFT AXLE LOCK |
| 13.350.110 |  |
MASTER LIGHTING SWITCH | 13.350.134 |  |
BEACON | 13.350.084 |  |
PADS |
| 13.350.204 |  |
MASTER LIGHTING SWITCH | 13.350.049 |  |
BEACON | 13.350.123 |  |
LONGITUDINAL INCLINATION CONTROL |
| 13.350.026 |  |
DRIVING SEAT LIGHTING | 13.350.129 |  |
BEACON | 13.350.125 |  |
LATERAL INCLINATION CONTROL |
| 13.350.104 |  |
DRIVING SEAT LIGHTING | 13.350.057 |  |
BEACON | 13.350.132 |  |
CRANE |
| 13.350.193 |  |
OVER RPM | 13.350.185 |  |
BEACON | 13.350.133 |  |
OBSTRUCTED AIR FILTER |
| 13.350.021 |  |
ENGINE STOP | 13350.090 |  |
BEACON | 13.350.139 |  |
IRRIGATION |
| 13.350.022 |  |
DRIVER DOOR | 13.350.055 |  |
DIPPED BEAM | 13.350.140 |  |
ROLL VIBRATIONS |
| 13.350.023 |  |
DOOR OPENER, DOOR 1 | 13.350.111 |  |
DIPPED BEAM | 13.350.144 |  |
CORNER LIGHT |
| 13.350.024 |  |
DOOR OPENER, DOOR 2 | 13.350.207 |  |
DIPPED BEAM | 13.350.145 |  |
EDC STATUS |
| 13.350.099 |  |
BELL | 13.350.060 |  |
HIGH BEAM | 13.350.146 |  |
EDC ALARM |
| 13.350.105 |  |
BELL | 13.350.196 |  |
HIGH BEAM | 13.350.147 |  |
RESET FOR ENGINE START |
| 13.350.029 |  |
HORN | 13.350.035 |  |
LIGHT TEST | 13.350.148 |  |
LONGITUDINAL LEVELING |
| 13.350.092 |  |
HORN | 13.350.135 |  |
540 POWER TAKE-OFF | 13.350.149 |  |
BAR ORIENTATION |
| 13.350.164 |  |
HORN | 13.350.136 |  |
1000 POWER TAKE-OFF | 13.350.151 |  |
FAN SPEED CHANGER |
| 13.350.027 |  |
INTERIOR DOME LIGHT | 13.350.081 |  |
FAST-GEAR | 13.350.154 |  |
TRANSVERSE LEVELLING |
| 13.350.070 |  |
INTERIOR DOME LIGHT | 13.350.075 |  |
FAST-GEAR | 13.350.155 |  |
CORNSTALKCUTTER CONTROL |
| 13.350.073 |  |
INTERIOR DOME LIGHT | 13.350.076 |  |
FAST-GEAR | 13.350.156 |  |
THRESHING SPEED CHANGER |
| 13.350.113 |  |
INTERIOR DOME LIGHT | 13.350.120 |  |
FAST-GEAR | 13.350.158 |  |
THIRD CYLINDER INHIBIT |
| 13.350.025 |  |
REVERSING LAMP | 13.350.141 |  |
AHEAD FAST-GEAR | 13.350.159 |  |
MIRROR ADJUSTMENT |
| 13.350.195 |  |
FUEL LEVEL | 13.350.142 |  |
BACK SLOW-GEAR | 13.350.160 |  |
BAR AUTOMATIC FLOATING HEIGHT |
| 13.350.015 |  |
FUEL LEVEL | 13.350.061 |  |
SLOW-GEAR | 13.350.161 |  |
UNLOADING TUBE CONTROL |
| 13.350.020 |  |
WINDSCREEN WIPER WASHER | 13.350.078 |  |
SLOW-GEAR | 13.350.163 |  |
HAND BRAKE ENGAGE |
| 13.350.046 |  |
WINDSCREEN WIPER WASHER | 13.350.048 |  |
P.T.O. | 13.350.165 |  |
BRUSH |
| 13.350.137 |  |
WINDSCREEN WIPER WASHER | 13.350.054 |  |
P.T.O. | 13.350.166 |  |
ASPIRATOR |
| 13.350.058 |  |
WINDSCREEN WIPER WASHER | 13.350.173 |  |
P.T.O. | 13.350.168 |  |
AUTOMATIC STARTER CONTROL |
| 13.350.052 |  |
WINDSCREEN WASHER | 13.350.088 |  |
SHAKER | 13.150.170 |  |
SLIP SENSOR |
| 13.350.069 |  |
WINDSCREEN WASHER | 13.350.117 |  |
SHAKER | 13.350.172 |  |
AUTOMATIC TRANSMISSION CONTROL |
| 13.350.089 |  |
WINDSCREEN WASHER | 13.350.096 |  |
FLUX CONTROL LIGHT | 13.350.176 |  |
REFRIGERATOR ON |
| 13.350.102 |  |
WINDSCREEN WASHER | 13.350.109 |  |
FLUX CONTROL LIGHT | 13.350.179 |  |
BILGE PUMP |
| 13.350.107 |  |
WINDSCREEN WASHER | 13.350.059 |  |
DIRECTION INDICATOR | 13.350.182 |  |
LOAD INC |
| 13.350.128 |  |
WINDSHIELD WIPER | 13.350.143 |  |
DIRECTION INDICATOR | 13.350.183 |  |
FORK COMP |
| 13.350.065 |  |
WINDSHIELD WIPER | 13.350.063 |  |
INDICATOR | 13.350.186 |  |
HEATING FAN |
| 13.350.085 |  |
WINDSHIELD WIPER | 13.350.103 |  |
DEFROSTER | 13.350.188 |  |
GENERATOR LOAD |
| 13.350.108 |  |
WINDSHIELD WIPER | 13.350.106 |  |
DEFROSTER | 13.350.189 |  |
ENGINE OIL PRESSURE |
| 13.350.205 |  |
WINDSHIELD WIPER | 13.350.152 |  |
MANUAL LONGITUDINAL LEVELLNG | 13.350.190 |  |
WATER TEMPERATURE |
| 13.350.047 |  |
REAR WINDOW WIPER WASHER | 13.350.153 |  |
MANUAL LONGITUDINAL LEVELLNG | 13.350.191 |  |
HIDRAULIC OIL LEVEL |
| 13.350.138 |  |
REAR WINDOW WIPER WASHER | 13.350.150 |  |
LEVELING | 13.350.192 |  |
TRANSMISSION OIL TEMPERATURE |
| 13.350.062 |  |
REAR WINDOW WIPER | 13.350.162 |  |
LEVELING | 13.350.194 |  |
AIR CLEANER |
| 13.350.011 |  |
HEADLIGHT LEN WIPER WINDSCREEN WASHER | 13.350.071 |  |
RADAR CONTROL ON | 13.350.198 |  |
LIFT UP DOWN |
| 13.350.033 |  |
HEADLIGHT WASHER | 13.350.126 |  |
RADAR CONTROL ON | 13.350.212 |  |
LEVELLING |
| 13.350.034 |  |
INSTRUMENT LIGHTING | 13.350.178 |  |
BLOCK STABILIZERS | 13.350.213 |  |
LIFTER |
| 13.350.197 |  |
ALL WHEEL DRIVE | 13.350.187 |  |
BLOCK STABILIZERS | 13.0350.0215 |  |
CONSTANT RPM |
| 13.350.051 |  |
ALL WHEEL DRIVE | 13.350.094 |  |
DUMP BODY | 13.0350.0216 |  |
BOOST |
| 13.350184 |  |
ALL WHEEL DRIVE | 13.350.200 |  |
DUMP BODY | |||
| 13.350.167 |  |
ALL WHEEL DRIVE | 13.350.180 |  |
MOBILE AXLE | |||
